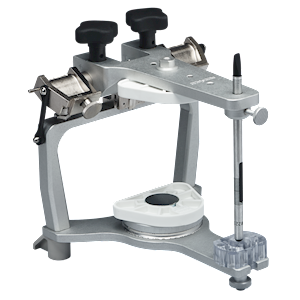

Articulator W/Qms MODEL 2240Q

2000 Series Articulators:

• Interframe spacing of over 4" allowing for easy mounting of even the bulkiest casts
• Excellent options for orthodontists and oral surgeons
• Rounded edges and frame corners for enhanced visibility and posterior access
• Open fossa design

Model 2240Q Articulator Features:

• Adjustable condylar inclination: 0-70°
• Adjustable immediate side shift: 0-3mm
• Fixed progressive side shift: 7 1/2°
• Fixed intercondylar distance: 110mm
• 3/4" (19mm) curved eminentia
• Positive centric latch
• "Accumount" system of interchangeability which allows accurate transfer of casts between articulators
• Comes complete with: flat incisal table, dual-end incisal pin, 4 disposable magnetic mounting plates, instruction manual
