Air Techniques is the leading and largest manufacturer of dental air compressors in North America. From design to installation, we are there every step of the way. It’s time to take the next step in clean air.

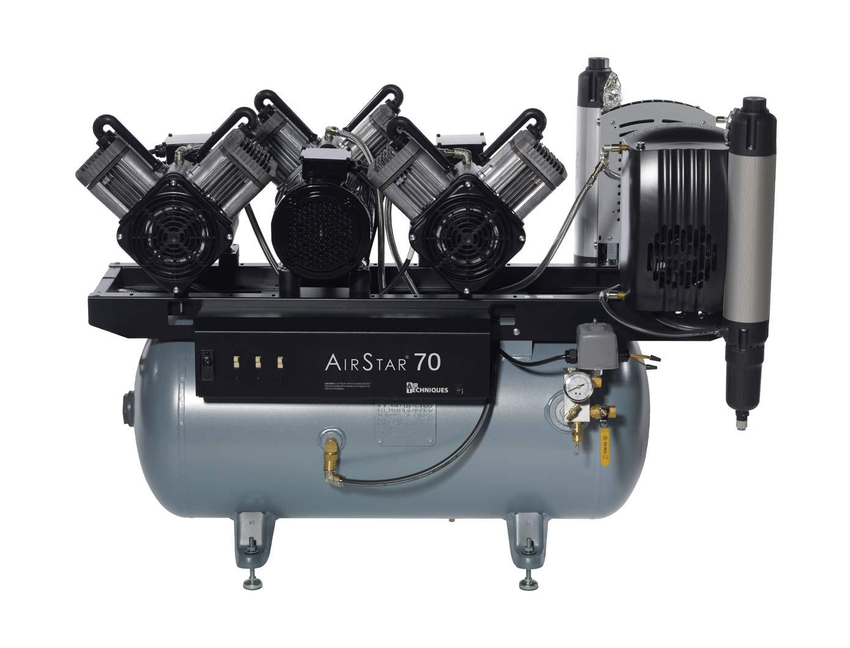

Part Number | AS70 |
---|---|
Simultaneous Users | 7 - 12 |
Compressor Head | Triple 1.5 HP |
CFM @ 80psi (Cubic Ft. Min.) | 15.0 |
Tank Size (Gallons) | 30 |
Voltage Rating (V) | 220 |
Voltage (Min/Max) | 198/242 |
---|---|
Panel Breaker (A) | 40 |
Wire Size (Gauge) | 8 |
Weight (Lbs) | 430 |
Dimensions W x H x D (inches) | 47.75 x 35 x 21.75 |
Dimensions w/ Sound Cover W x H x D (inches) | 51 x 36 x 29.5 |
