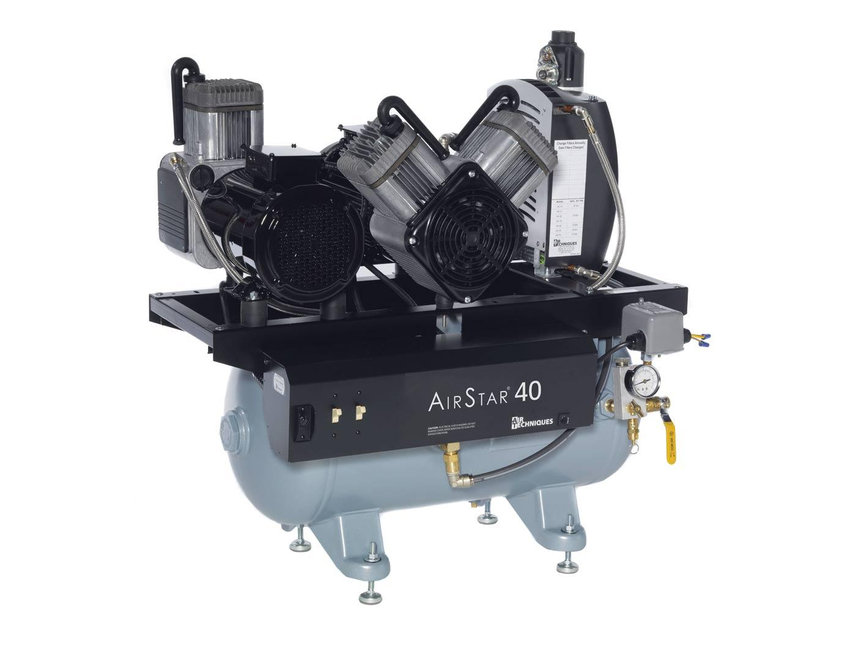

Specialized engineers put every AirStar Compressor – constructed from parts made in our 200,000 square foot facility – through rigorous and repetitive testing at our in-house laboratories. From design to installation, Air Techniques is there every step of the way.
Part Number | AS40 |
---|---|
Simultaneous Users | 4 - 6 |
Compressor Head | Single .75 HP & Single 1.5 HP |
CFM @ 80psi (Cubic Ft./Min.) | 7.5 |
Tank Size (Gallons) | 12 |
Voltage Rating (V) | 220 |
Voltage (Min/Max) | 198/242 |
---|---|
Panel Breaker (A) | 20 |
Wire Size (Gauge) | 12 |
Weight (Lbs) | 255 |
Dimensions W x H x D (inches) | 32.5 x 30.5 x 20 |
Dimensions w/ Sound Cover W x H x D (inches) | 33.25 x 32.25 x 22.5 |
